Track flat car

Tobacco conveying trackless electric platform vehicle
According to the different uses of the industry, the battery track flat car can be used as a loading platform to carry a variety of machine tools, consoles and other professional equipment as a mobile operating right platform; special treatments such as high temperature resistance, explosion protection, and corrosion resistance can be used in high temperature, acid Normal operation in corrosion zone and dust-free environment.
Electric rail flat cars are also called rail flat cars, over-span flat cars, trolleys, and electric flat cars. It has the advantages of simple structure, convenient use, easy maintenance, large carrying capacity and less pollution. It is widely used in machine manufacturing and metallurgical factories, as the interior of the workshop to cooperate with the crane to transport heavy objects across the span. KP series electric flat cars have low height, strengthened table top, easy modification and convenient maintenance.

Remote control for battery track flat car
The project is located in Dongguan, China. The electric platform truck has a load of 5 tons, and the battery powers the rail car to provide power. The transfer truck of the project is mainly used to transport cement molds for use in the workshop. By transporting the finished cement mold to the finished product area, the purpose of rapid transportation has been achieved.
The characteristics of the rail car: The rail transfer car is different from the trolley car. The rail car needs to lay the track in advance, and the transportation route is certain. The laying of the guide rail can make the curved track or the straight line. Railcars are not limited by distance and power. Can be transported for a long time.

The rollover electric flat car is an electric flat car that can automatically unload goods on the side, improving our unloading efficiency.
The rollover and dump electric flat car is a battery-powered hydraulic flip and dump electric flat car. It uses the huge resistance output of the hydraulic system. Using the principle of lever, the loading and unloading track flat car can make the lifting platform tilt and unload. The car uses the principle of lever change. , So that the body rises while the other side is fixed, allowing the cargo to slide down by itself, thus forming the principle of self-unloading. The overall structure of the car is reasonable, the cargo is easy to unload, and it is easy to maintain after use.

BJT is a cable reel-powered rail flat car produced by Parfit Company. It is a cable-powered mid-distance transport flat car. It is generally used for transportation distances of more than 20m and less than 99m, and the track needs to be straight. It is not recommended to turn. If the track is powered by a cable, it can be used as a battery, a low-voltage track, and a trolley line if the track has a turn. The cable-type track flat car is suitable for straight, medium and short distance work. It is recommended that customers who use cable reels for power supply weigh more than 5 tons (T), which can be used effectively without waste. Henan Perfect Handling Equipment Co., Ltd. has a modern large-scale plant and advanced production equipment, and is a professional manufacturer specializing in the production of electric flat cars, trackless flat cars, and track flat cars. The series of trackless electric flat cars and electric flat cars produced by the company

What should I pay attention to when charging the battery electric flat car?
What should I pay attention to when charging the battery electric flat car? The battery of the battery electric flat car is not firm and can be maintained without maintenance. The battery adopts the S-type track flat car with protection functions such as short circuit, phase loss, electric display, undervoltage, overcurrent and so on.
The battery electric flat car battery is a traction battery with a tubular positive electrode. In the case of high-current discharge, by correctly charging the battery electric vehicle, the battery life can be extended. The battery electric vehicle is not limited by the driving distance and can be selected with a very low failure rate. Offline charging refers to industrial use. The battery is charged when the electric flat car is not working.
After buying a battery electric flat car, you should pay attention to the charging problem when using the equipment.

Turntables On Cross Rails is a kind of equipment to realize the in-situ turning and reversal of the track flat car. It is installed at the position where two tracks cross. One or more tracks are laid on the platform. The upper surface of the track is level with the upper surface of the track on the ground. The track gauge is the same as that of the ground. The flat car runs completely until it stops on the turntable. The turntable starts to rotate to the required angle to complete the docking with the track on the ground. The flat car starts again to run along the docked track to the required position. Its special function is a common equipment in rail transportation system. The loading weight of the trolley is the load capacity of the supporting turntable. The rotation angle of the turntable can be set according to the different needs of customers. It can stop at any angle of 360 degrees, and it can also realize the well-shaped cross operation.

The BJT series is a cable-powered rail transfer cart. The AC 380 cable is connected to the flat cable reeling cable to realize the flat car power supply. The reeling device is placed under the track flat car and directly controls the power supply through the AC control system. Start, stop, advance, retreat, etc. of the motor.

The working principle of BDG series electric flat car is as follows: the AC 380V power supply is stepped down to the AC 36V two-phase through the transformer and connected to the two rails respectively. The wheels on the track flat car introduce the AC 36V power supply on the track into the vehicle electrical equipment. The box, through the rectifier module, rectifies the AC 36V to DC 36V and then controls the DC motor through the DC control system to make the flat start, stop, advance, retreat, speed regulation and so on.

Trackless Transfer Platform Vehicle With Table Insulation Treatm，Customized electrical switch high-voltage test transfer vehicle, this project purchases a total of two vehicles, the transfer vehicle is used as the electrical switch high-voltage test platform, so the transfer vehicle has been insulated on the table (insulation voltage ranges from 145v-1050v). The load capacity is 5 tons, the safety factor is 1.3, and it is used for epoxy floor. Use on hardened ground such as cement roads.

Battery DC Transfer Cart
BWP trackless flat cars are powered by batteries. The batteries are installed inside the electric flat cars. The batteries provide power to the DC traction motor. Commands such as start, stop, forward, reverse, turn left, turn right, and speed regulation are issued through the remote control. The electrical control system issues commands to the DC motor to drive the electric flat car to run various actions.
Product advantages
1. The trackless cross-span electric flat car has a large starting torque, stable driving, and a small turning radius, which can realize in-situ rotation, and can be freely transported indoors and outdoors under the condition of excellent ground flatness and no slope. The wireless remote control can remotely control the forward, reverse, turn and stop of the car, which is safe and easy to operate.
2. The trackless electric crossover flat car is powered by a battery, has no external power supply, and the rubber wheels do not need a track, and can turn 360° freely without being restricted by the track. The remote control handle is easy to operate, convenient and flexible, but it is not suitable for high frequency of use. High workplace.

The product can be customized, with a load capacity of 1-300 tons, the power is powered by the battery to the power system, so as to achieve flat car operation, and the size of the table can be customized. It is mainly to transport steel plates and steel bars to realize free operation in the workshop.

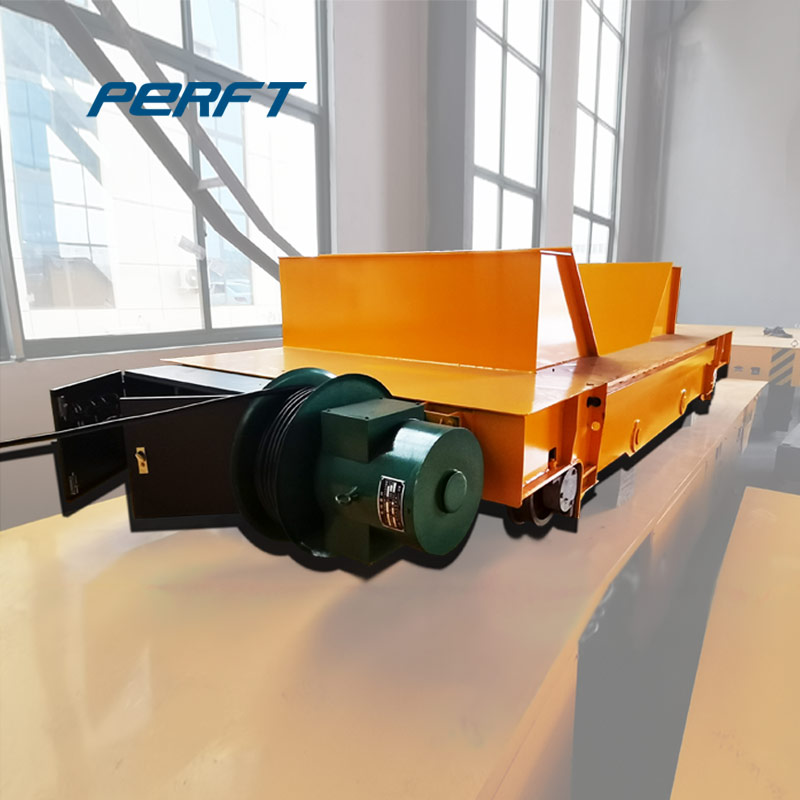

The 20-ton electric truck is a flat truck with a rated load of 20T. Specially designed for heavy weight, making this vehicle highly professional.,Product Name£º20 ton electric load track flat car
Table size£¨mm£©£ºL4000*W2200*H550
Product Weight (t)£º5.9
Wheel Quantity: 4
Motor power(kw): 2
Running distance for one charge(km): 4.8

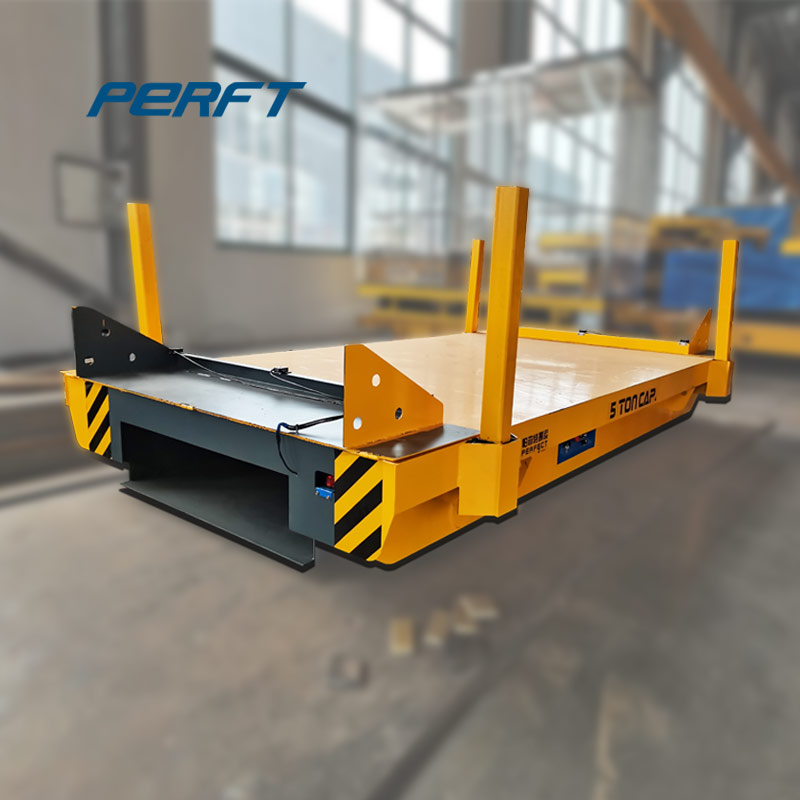

The factory battery track flat car is a flat car with a built-in power supply in the body, which can get rid of the limitation of the power cord and realize the free transfer of the body. Suitable for various transportation environments in factories. At the same time, the track laying requirements are not high.,Product Name£ºFactory battery track flat car
Table size£¨mm£©£ºL2000*W1500*H450
Product Weight (t)£º2.8
Wheel Quantity: 4
Motor power(kw): 1
Running distance for one charge(km): 6.5
